Bowling Ball Layout Calculator for Dual Angle Drilling
🎳 Bowling Ball Layout Calculator
Match pin distance, drilling angle, and VAL angle to speed, rev rate, and lane shape.
🔧Layout Inputs
Use the calculator as a layout starting point. Final drilling should still respect your PAP, span, and driller checks.
📋Preset Layouts
🧱Component Grid
3.0-6.5 in
Pin-to-PAP
Tightens or widens flare and overall hook shape.
20-80 deg
Drilling Angle
Lower reads sooner, higher pushes farther.
20-75 deg
VAL Angle
Controls how fast the ball changes direction.
2.5-6.0 in
PSA-to-PAP
Only used on asymmetrical cores.
🎯Live Result
Dual Angle Layout
42 x 35 x 4.5
drill x VAL x pin
Pin-to-PAP
4.5
inches
VAL Angle
35
degrees
Flare Estimate
3.8
inches
Full Breakdown
| Factor | Input or Formula | Result | Note |
|---|
📘Reference Tables

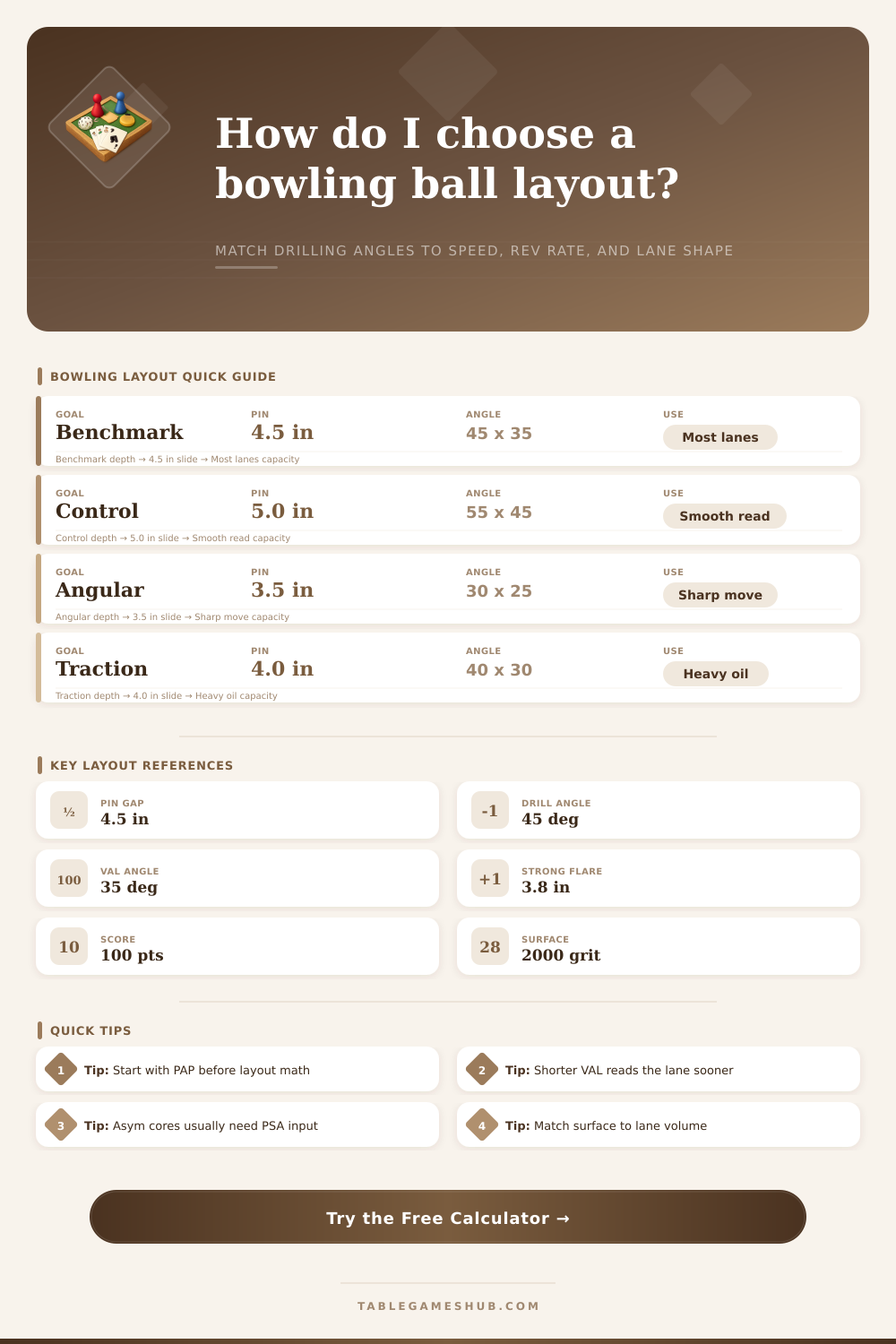

| Goal | Pin | Angle | Use |
|---|---|---|---|
| Benchmark | 4.5 in | 45 x 35 | Most lanes |
| Control | 5.0 in | 55 x 45 | Smooth read |
| Angular | 3.5 in | 30 x 25 | Sharp move |
| Traction | 4.0 in | 40 x 30 | Heavy oil |
| Pattern | Layout Lean | Surface | Result |
|---|---|---|---|
| 36-38 ft | Lower angles | 500-1000 | Earlier read |
| 39-41 ft | Balanced | 1000-2000 | Middle ground |
| 42-44 ft | Moderate | 2000 | Clean control |
| 45+ ft | Higher angles | 3000 | More push |
| Grit | Read Speed | Shape | Best Fit |
|---|---|---|---|
| 500 | Fast | Strong | Heavy oil |
| 1000 | Quick | Early roll | Fresh sport |
| 2000 | Balanced | Benchmark | House shot |
| 3000 | Clean | Long skid | Long lanes |
| Core | Layout Lean | PSA Need | Typical Shape |
|---|---|---|---|
| Symmetric | Simple | None | Smoother |
| Asymmetric | Stronger | Yes | More pop |
| Weak asym | Control | Yes | Blendable |
| Strong asym | Stable | Yes | Defined |
💬Practical Tips
Tip 1
Measure PAP before you trust any layout numbers. The same pin and VAL values behave differently when the PAP changes.
Tip 2
Use lower VAL angles for earlier traction and higher angles for cleaner push on longer patterns or cleaner surfaces.
Rolling ball drilling arranges holes stratege for your thumb and other fingers. It considers your grip style, hand size and wanted motion of the ball. The arrangement of those holes alters the balance of the ball and its way down the lane.
Various arrangements exist for balls, and each affects the hook potential and the course of the ball. The mix from hole corners, CG place and distance between pin and PAP decides the reaction of the ball on the lane.
Bowling Ball Drilling Basics
Normal service answers for newcomers or funny bowlers. It suits for children, the first bowling ball or for play with friends and family. The service applies classical arrangement with usual sizes and spans.
Many plans and drill sheets assume, that the PAP is 5 inches outside and 1 inches up with 45-degree axis shift, but each bowler have his own way, PAP and rotation. For instance, some have rev rate more than 15 mph above the standard ball speed.
The arrangement decides, as far as you go of the stable axis during release of the ball. Releasing it on axis afar of the stable rotary axis, the ball will turn for find stability. Various systems have different ideas, but each gives alike details about the plan.
The Dual Angle system for one handers are simpler for learn and understand. It requires only length measure in the centre plus two angular measures. For symmetrical ball find the plan, later depress 5 of the VAL angle and add it to the drilling angle.
For asymmetric balls is supplementary mark called Mass Bias. If you lay the mass bias measure beside the way or thumb, the motion dies. Measure more afar of the thumb do earlier and strong hook.
All arrangements must base on the positive axis point or PAP. Ball drillers find the PAP. Drilling of bowling balls require special tools and knowledge.
Best involve with certified pro shop for analyse the PAP and create custom plans for different oil types and lane conditions. Focus first on permanent form and release before bid sophisticated arrangements.
