🛝 Swing Set Spacing Calculator
Calculate safe clearance zones, post spacing, beam dimensions & total footprint for any swing set configuration
⚡ Quick Presets
⚙️ Configuration
✅ Swing Set Spacing Results
📋 Swing Type Quick Reference
Belt Swing
24 in
Min Post Spacing
Toddler Bucket
24 in
Min Post Spacing
Tire Swing
36 in
Min Post Spacing
Glider
30 in
Min Post Spacing
Belt Swing
72 in
Front/Back Clearance
Tire Swing
96 in
Radial Clearance
Std Beam Height
8 ft
Ages 5–12
Anchor Depth
18–24 in
Below Grade
📐 Safety Clearance by Swing Type (ASTM F1487)
| Swing Type | Front/Back Clear. | Side Clearance | Tire Radial Clear. | Min Beam Ht | Max Users |
|---|---|---|---|---|---|
| Belt / Flat Seat | 72 in (6 ft) | 18 in each side | N/A | 6 ft | 1 per seat |
| Toddler Bucket | 72 in (6 ft) | 18 in each side | N/A | 6 ft | 1 per seat |
| Tire Swing (horiz) | 96 in radial | 96 in radial | 96 in (8 ft) | 8 ft | 3 max |
| Glider / Platform | 96 in (8 ft) | 24 in each side | N/A | 7 ft | 2 per seat |
| Trapeze Bar | 72 in (6 ft) | 18 in each side | N/A | 8 ft | 1 |
| Commercial Belt | 84 in (7 ft) | 24 in each side | N/A | 7 ft | 1 per seat |
📘 Standard Swing Set Frame Dimensions
| Set Size | Swings | Frame Width | Frame Depth | Total Safety Zone | Recommended Yard |
|---|---|---|---|---|---|
| Small (Toddler) | 1–2 | 7–8 ft | 4 ft | 17–20 ft wide × 16 ft deep | 20 × 20 ft min |
| Residential 2-Swing | 2 | 9–10 ft | 5 ft | 21–22 ft wide × 17 ft deep | 25 × 20 ft |
| Residential 3-Swing | 3 | 13–14 ft | 5 ft | 25–26 ft wide × 17 ft deep | 30 × 22 ft |
| Combo Playset | 2+slide | 12–15 ft | 10–12 ft | 26–27 ft wide × 24 ft deep | 32 × 28 ft |
| Commercial 4-Bay | 4 | 20–22 ft | 6 ft | 32–34 ft wide × 18 ft deep | 40 × 25 ft |
| Tire Swing Single | 1 tire | 8 ft tripod | 8 ft | 24 ft radial zone | 25 × 25 ft |
📊 Safety Surface Depth by Beam Height (ASTM F1292)
| Beam Height | Wood Mulch | Rubber Mulch | Sand | Pea Gravel | Fall Zone (ft) |
|---|---|---|---|---|---|
| Under 5 ft | 6 in | 4 in | 9 in | 6 in | 6 ft radius |
| 5 ft – 7 ft | 9 in | 6 in | 9 in | 6 in | 7 ft from equip |
| 7 ft – 9 ft | 12 in | 6 in | 12 in | 9 in | 8 ft from equip |
| 9 ft – 11 ft | 12 in | 9 in | 12 in | 12 in | 9 ft from equip |
| Over 11 ft | 12 in+ | 9 in+ | Not Rec. | 12 in+ | 10 ft from equip |
💡 Safety Tips & Planning Notes
🚧 ASTM Clearance Rule: Always maintain at least 6 ft (72 in) of clear space in front of and behind each swing seat, measured from the outermost arc of the swing path. Tire swings need 8 ft (96 in) in all directions.
📏 Post Spacing Formula: Minimum post-to-post spacing = 24 in per belt swing seat. For tire swings use 36 in. Total frame width = (number of swings × post spacing) + end post allowance (approx 24 in each end).
⛏️ Anchor Depth: Set posts at least 18–24 in below grade (frost line in cold climates). Use concrete footings for all wood and metal frames. Post length above ground + 24 in minimum below grade.
📐 Total Footprint: Total required space = frame width + (2 × front/back clearance) for length, and frame depth + (2 × side clearance) for width. Always add 10% buffer for comfortable mowing access and safety.
Get the distance between swings in a Swing Set matters much more than many folks believe. Swings need at least 24 inches of space from one another. That helps to lower the risk that children hit one another.
Although 24 inches is the bare minimum most people choose 30 to 36 inches for extra safety. That extra space is especially useful when children of different ages swing together.
How Much Space Do Swings Need
Some sources say that swings can be placed only 12 to 16 inches apart. Even so, if enough space is there, it is smarter to choose 24 inches. Also the kind of Swing Set matters.
Little chairs need less space. For bigger swings you need even more room between them to aviod bumps.

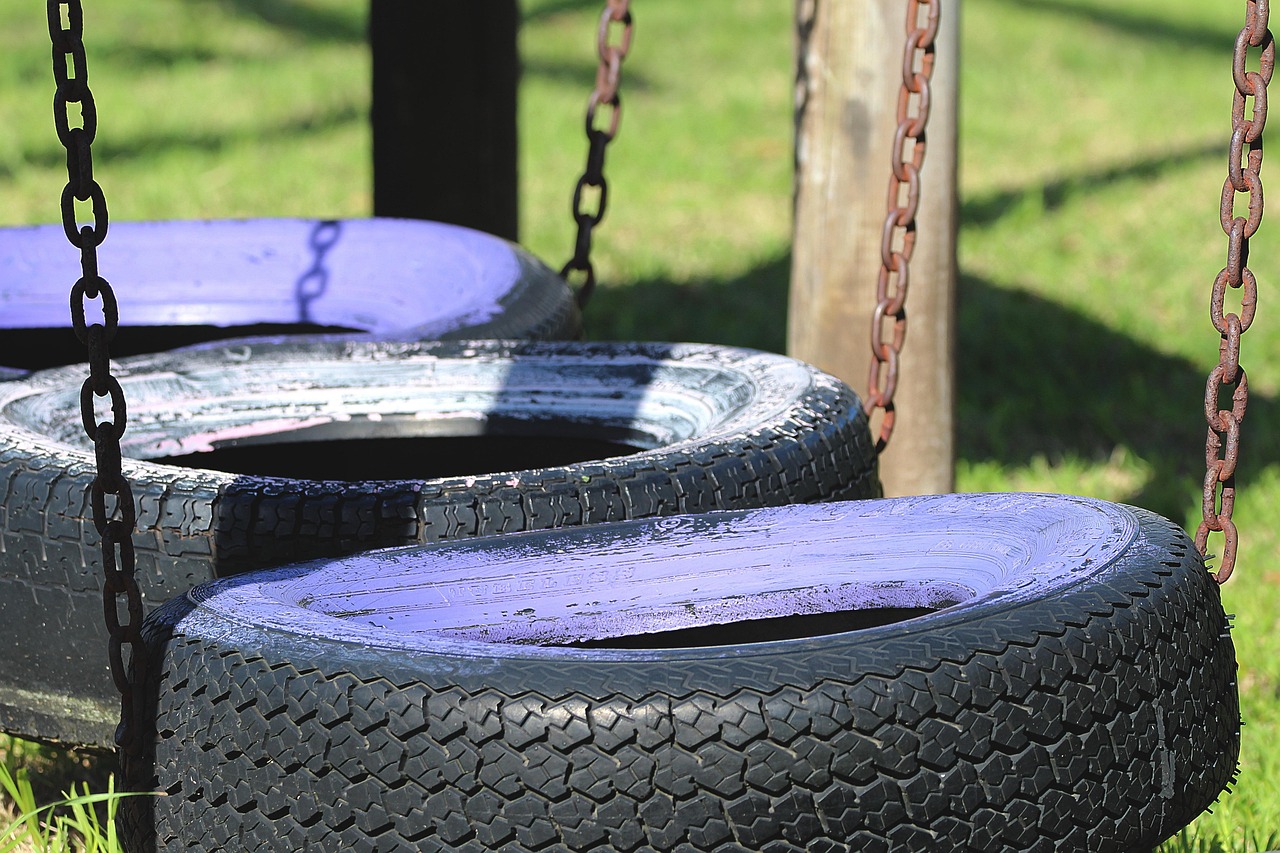

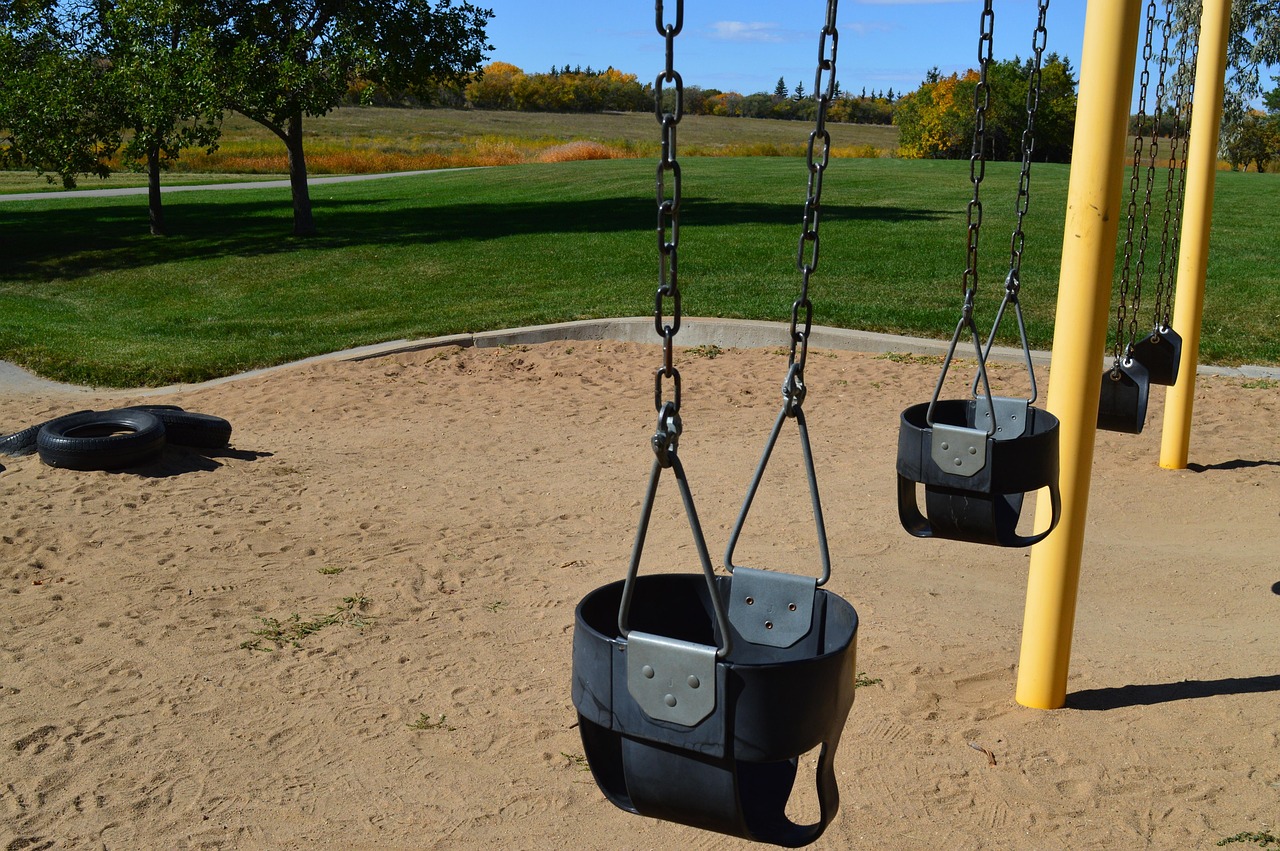

Standard swings in a typical Swing Set need middle spacing because of their front-to-back motion. Seat swings or child swings commonly need extra space due to there thick shape and limited movement. Disc swings or tire swings usually need the most area, because they can twist in several directions and even hold more than one child at once.
The safety zone around a Swing Set is also important as spacing between the swings. The Consumer Product Safety Commission notes that you need at least six feet of free space in every direction around the whole set. For bigger Swing Sets you may need even more area.
Soft ground and flat surfaces work best for setting up a Swing Set. Also a Swing Set must stand at least six feet away from other play gear.
Between the bottom part of a Swing Set and the ground must be around two feet. In front and behind the swings the space must be double the height of the upper beam. So if the beam is seven feet, you need 14 feet of empty area on both sides.
A setup with a two-level crossbar that sticks out three feet from the tower on each side needs eight feet of space for the front swing path and another eight feet for the back.
Taller Swing Sets add a new thing to think about. A set at around 11 feet of height with longer chains needs more room to make up for the wider arc of the swing. Height of the beam changes the forces on the building, but shortening the chains does not change thehorizontal forces.
Enough space not only eases the setup of a Swing Set in the garden. Without proper distance, a pushing child could crash into a fence, or the child could hit it. Careful planning before the build makes all the difference.
